FLAIL MOWER APPLICATIONS
Flail style mowers are generally used for maintaining more rugged areas where an polished clean finish is not required. The blades or flails are extremely durable and can handle thick & long grass, sticks, bark and debris. Ideal for grass cutting and mulching on farms, acreages, golf courses, parks, road sides, properties, horse and cattle studs to name a few.
WHAT DOES THE FLAIL DRUM LOOK LIKE?
The Paddock tow behind flail mowers have a rotating drum with a series of 24 flail blades. The drum stretches the length of the mower. This design, when compared to your standard style mower with rotating horizontal blades, is much more robust and can tackle more rugged vegetation.
Sinolink ATV Flail Mower can be towed behind any ATV, UTV or off road vehicle, powered by a 13hp/15hp Petrol engine, height of cut can be adjusted quickly and easily by adjuster bar fitted at the rear, it can run straight behind the towing vehicle or offset, fits a standard ball hitch. With 60(30)cutting blades and a Roller, it leaves a good finish, and be used to fields or large grass areas.
| MODEL OPTIONS | ATV FLAIL MOWER 120 | ATV FLAIL MOWER 150 |
| MODEL NUMBER | ATV-FLM120 | ATV-FLM150 |
| Engine | 13.5HP Briggs & Stratton | 13.5HP Briggs & Stratton |
| Start | Electric & Pull start | Electric & Pull start |
| Wheels | Side and rear operation | Side and rear operation |
| Safety Clutch | Included | Included |
| Rear Gate | Yes | Yes |
| Cutting Width | 1200mm/4ft | 1500mm/5ft |
| Mower width with wheels on the side | 1750mm | 2050mm |
| Mower width with wheels at the back | 1400mm | 1700mm |
| Adjustable Cutting Height | 10 - 100mm | 10 - 100mm |
| Deck Thickness | 4mm | 4mm |
| Side Wall Thickness | 6mm | 6mm |
| Number of Hammer Blades | 24 | 30 |
| Number of Belts | 2 belts | 2 belts |
| Colour | Grey (optional) | Grey (optional) |
| Powder Coated | Yes | Yes |
| Weight | 230kg | 310kg |
| Shipment size | 190 x 85 x 50 | 220 x 85 x 50 |
| Structural Warranty | 12 months | 12 months |
Cutting height can be easily adjusted to fit your mowing needs.
Simply use the built-in rotating handle to raise or lower the cutting height to your desired need.
Once set, the handle can be locked to ensure the height remains the same for an even cut.
1,Flail mower to be used with ATV/UTV, small tractor, car, etc..
2,Cuts effectively the large (wild) grass fields or roadsides.
3,The Flail Mower features changeable blade types for different types of mowing jobs.
You do not need a Lawn Mower, a Field Mower, and Trail mowers.
Simply change the blades to the correct type for your job.
4,Easily adjustable cut height
5,Flexible wheel setup (3 different wheel positions)
6,With optional openable top flap for making it easier to release the grass in case of jam at the rotor.
It also makes it easier to replace the hammers/blades.
- 15 hp Briggs & Stratton 420 ccm 4-stroke one cylinder fuel engine.
- Electric and manual start.
- Centrifugal clutch pulley (automatic drive engagement and disengagement).
- Sturdy toothed belts.
- Adjustable wheels height.
- Automatic belt tensioner.
- 6mm, powder-coated, strong, durable, robust body.
- Electronically balanced rotor.
- Weight: 230kg.
- Fuel tank capacity: 6.1l.
- Cutting width: 120cm.
- Working speed: 2-10km/h.
- Front aluminum flaps – against projectiles.
- Rear grass discharge.
- Anti-scalp rear roller. (It eliminates scalping in challenging conditions)
- Standard 50mm tow ball swivel hitch.
- Grease nipples on the height adjuster, on the belt pulley, on the rotor and roller bearings for smoother work.
- The cutting height can be adjusted from 15mm to 260mm.
- Flexible wheel setup: wheels can be positioned either on lateral sides or on front.
- (Making it capable of working in restricted narrow areas).
- Fully adjustable drawbar with 3 points offset function (towable inline or offset).
- Suitable for use with any vehicle (ATV, UTV, small tractor, or Jeep).
- Working efficiency : 2150-2550m²/h.
- Either Y blades or forged and galvanized hammer blades are applicable.
- Y-blades - for rough cutting, thick grass fields, etc,
- T-blades (hammer blades) - for a smoother finish on lawn/grass available optionally.
- Equipped with y-blade by default for rough cutting
- (It provides advanced mulching capabilities in the case of long/dense vegetation.).
Product Tags:
|
|

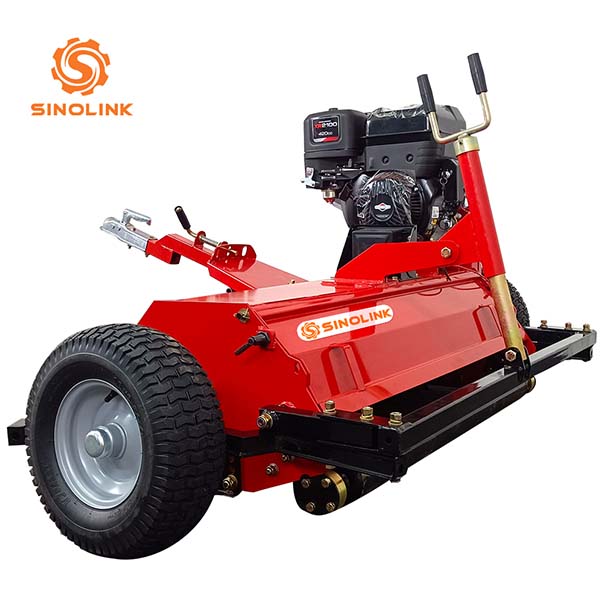

Tractor Supply ATV Flail Mower With Engine 1.2m 1.5m Width Images
|
